Conveyor Idler

  • Mining Conveyor Idler
  • Mining Conveyor Idler
  • Mining Conveyor Idler
Mining Conveyor IdlerMining Conveyor IdlerMining Conveyor Idler

Mining Conveyor Idler

  • Product description: Jumbo Heavy Industries Co., Ltd is a china top manufacturer of conveyor roller, conveyor idler, conveyor pulley.Our conveyor idlers/pulleys are built for performance and reliability.
  • INQUIRY

Main Features


SPECIFICATIONS
Diameter
φ89, φ102, φ108, φ114, φ127, φ133, φ139, φ152, φ159, φ165, φ194 or custom
Length
145mm-2800mm or custom
Tube
Q235(GB), Q345(GB), welded with DIN2394 standed or custom
Shaft
A3 and 45# steel(GB) or custom
Bearing
Single & Double Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance
Bearing Housing/Seat
Cold press working fit ISO M7 accuracy
Deep Press steel with raw material fit DIN 1623-1624 standard
Lubricating Oil
Grade 2 or 3 long-lasting lithium greasae
Welding
Mixed gas shielded arc welding end
Painting
Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

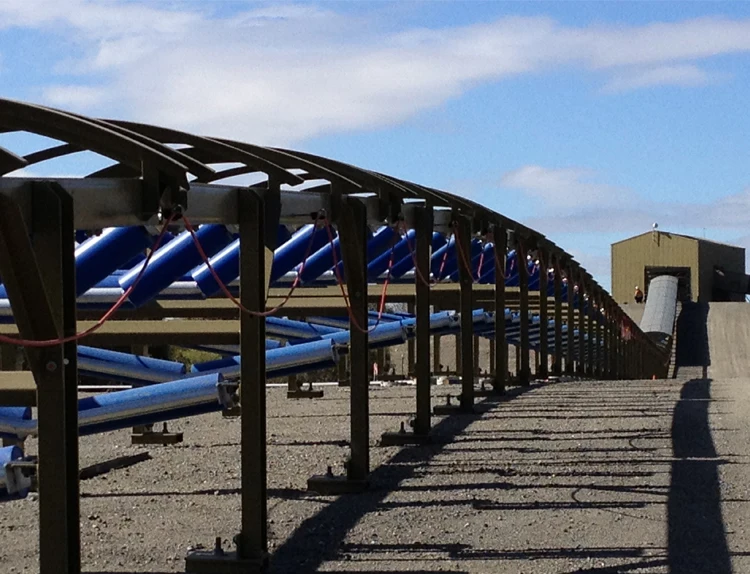

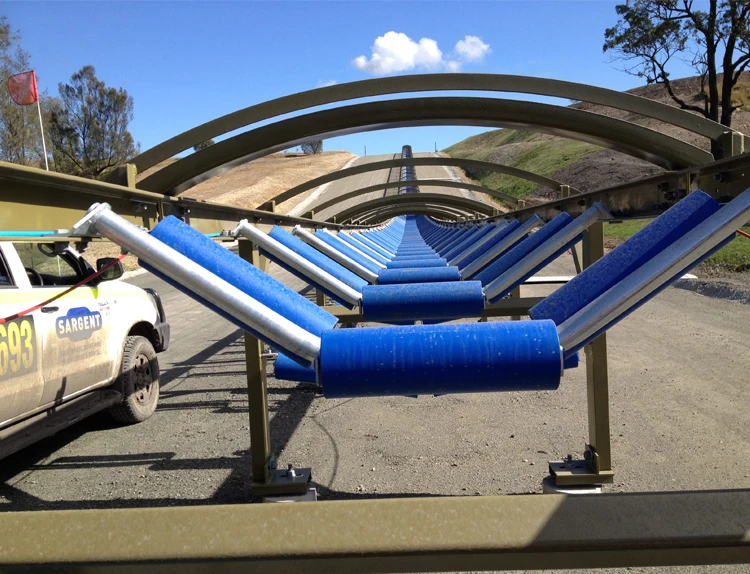

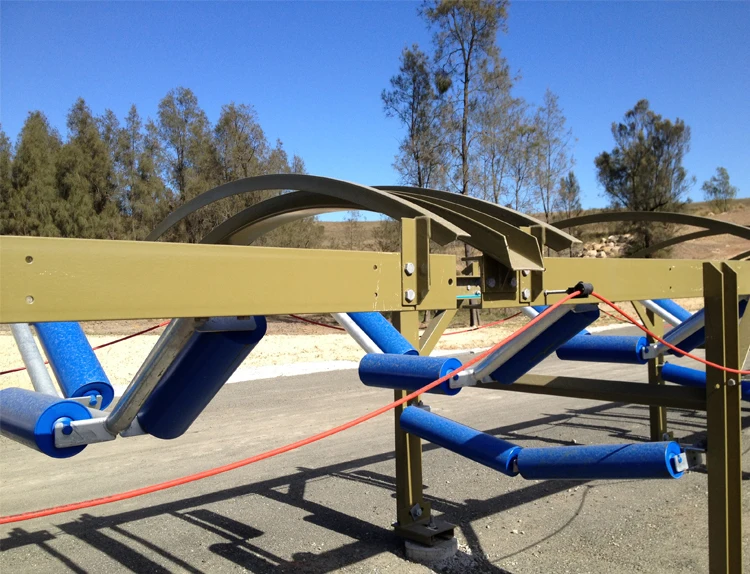

Project Showmining used manufacturer conveyorcarry trough rollermining used manufacturer conveyorcarry trough rollermining used manufacturer conveyorcarry trough rollermining used manufacturer conveyorcarry trough roller
